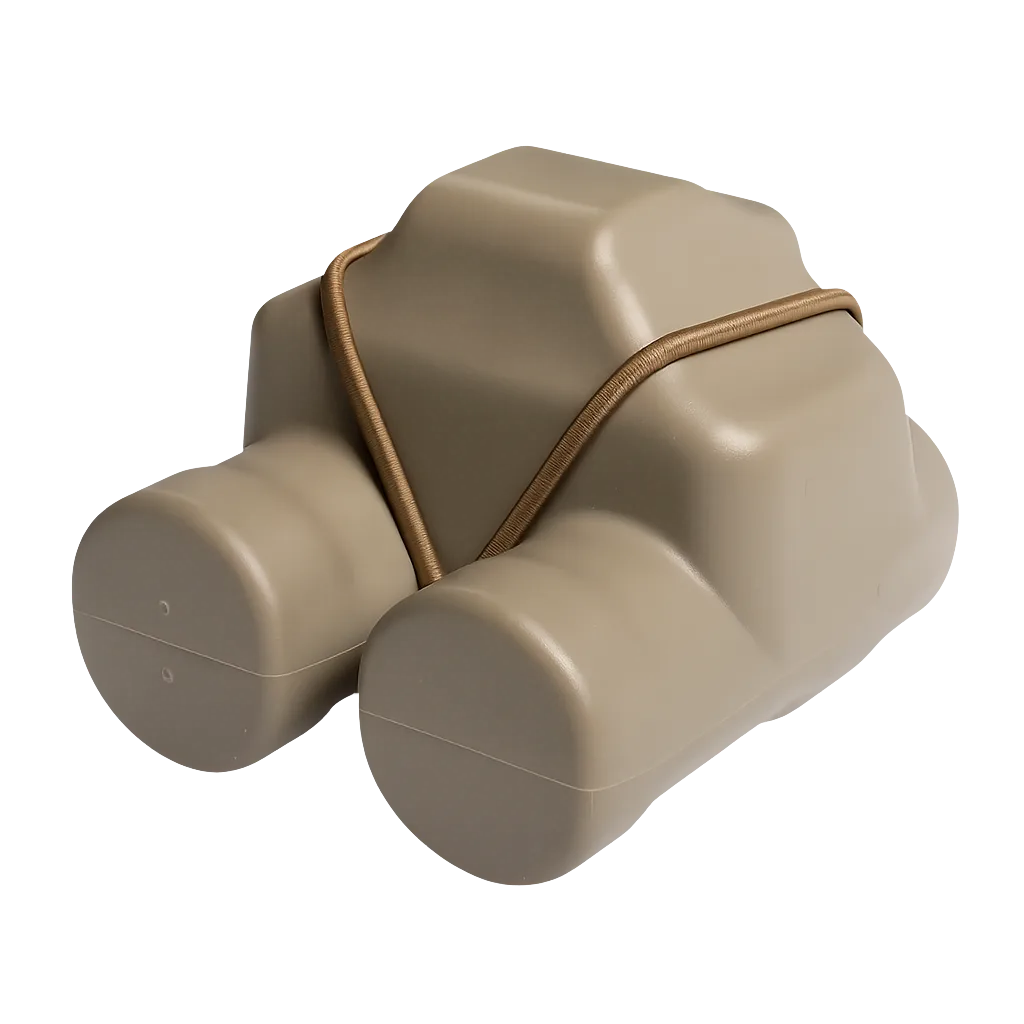

3/4 view 3/4

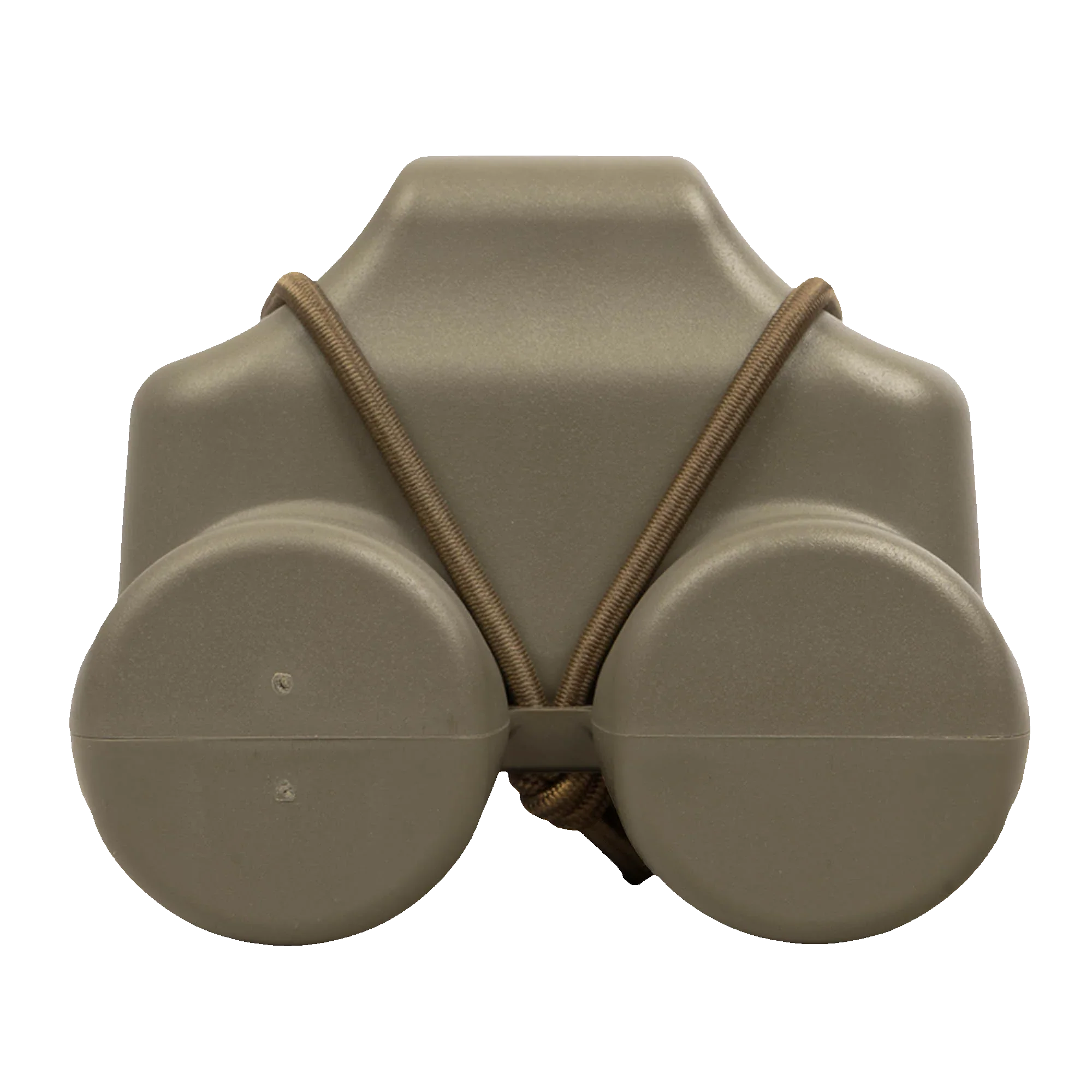

front view FRONT

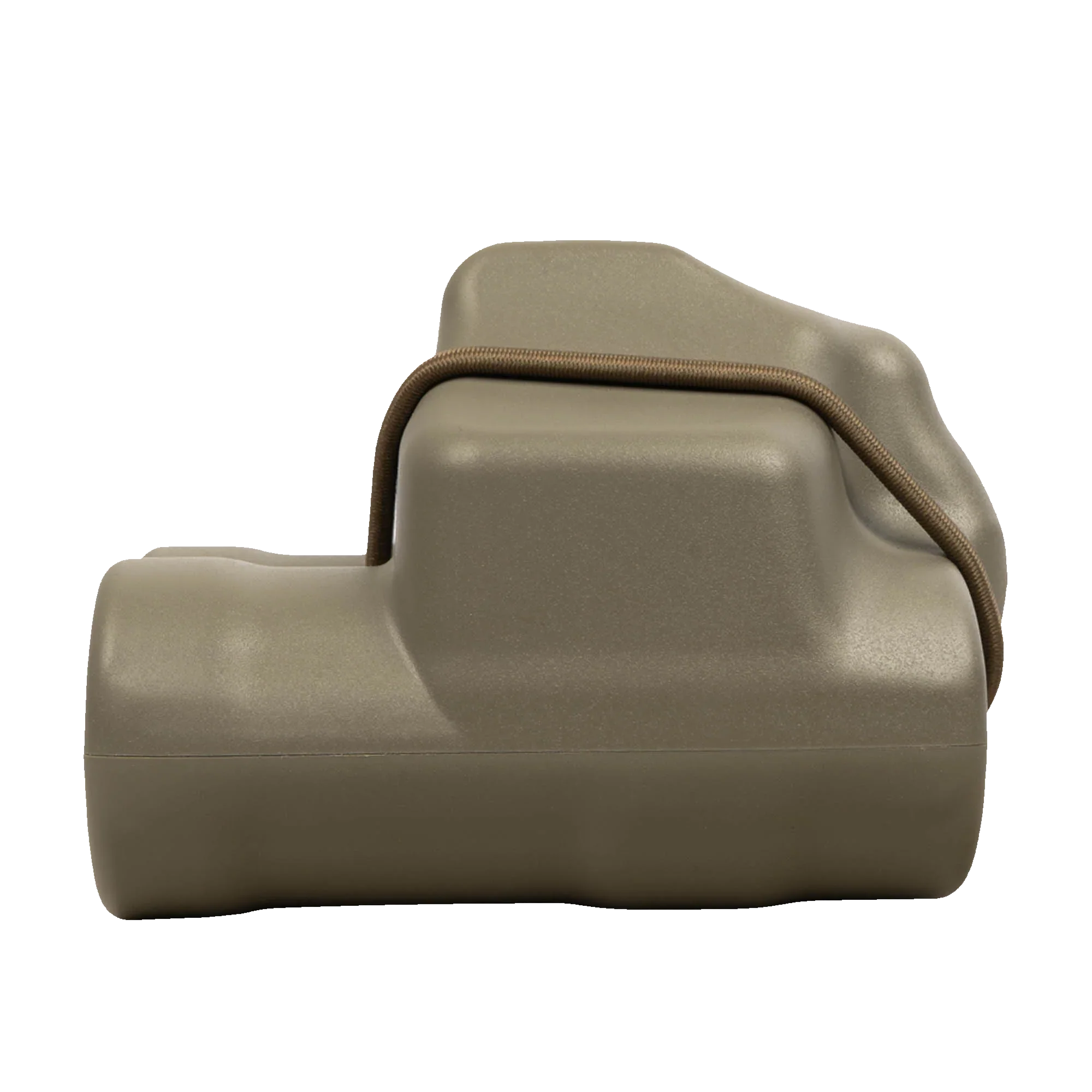

side view SIDE

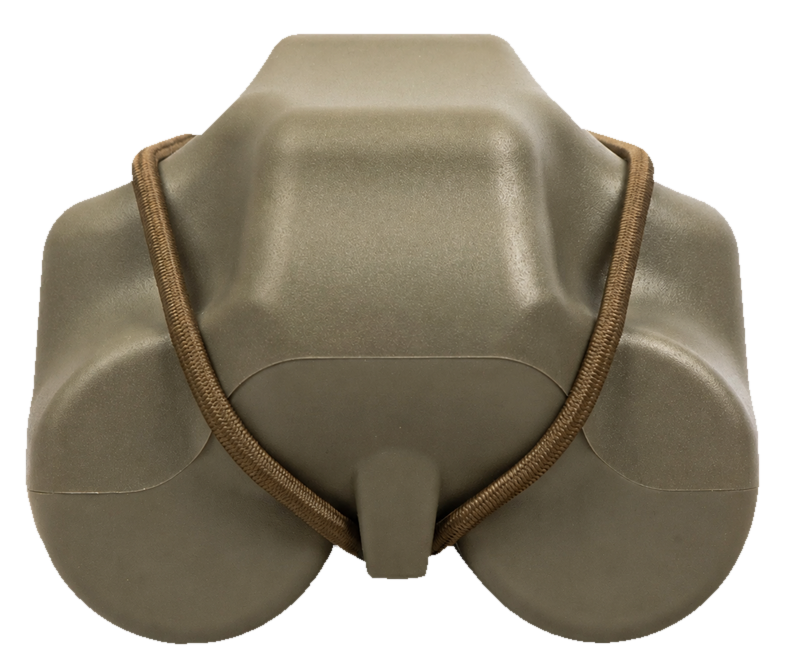

rear view REAR

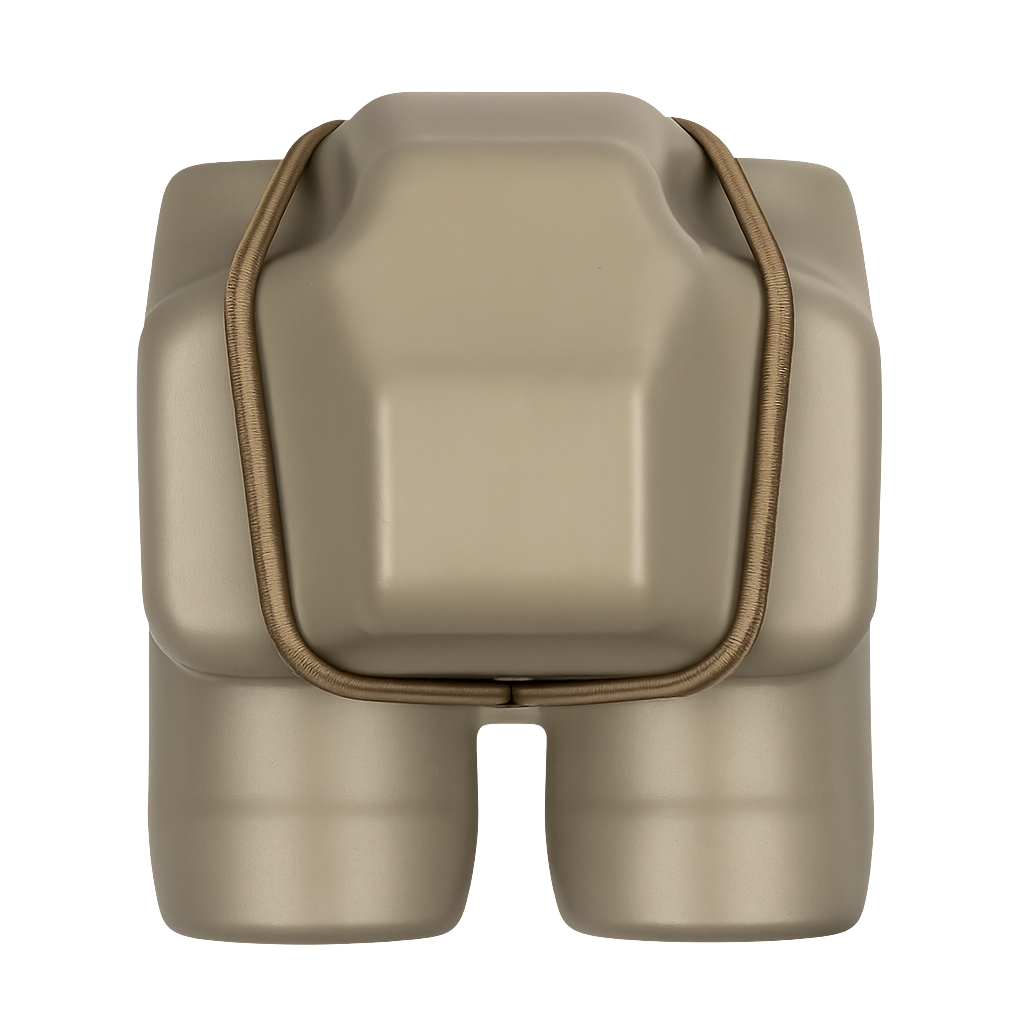

top view TOP

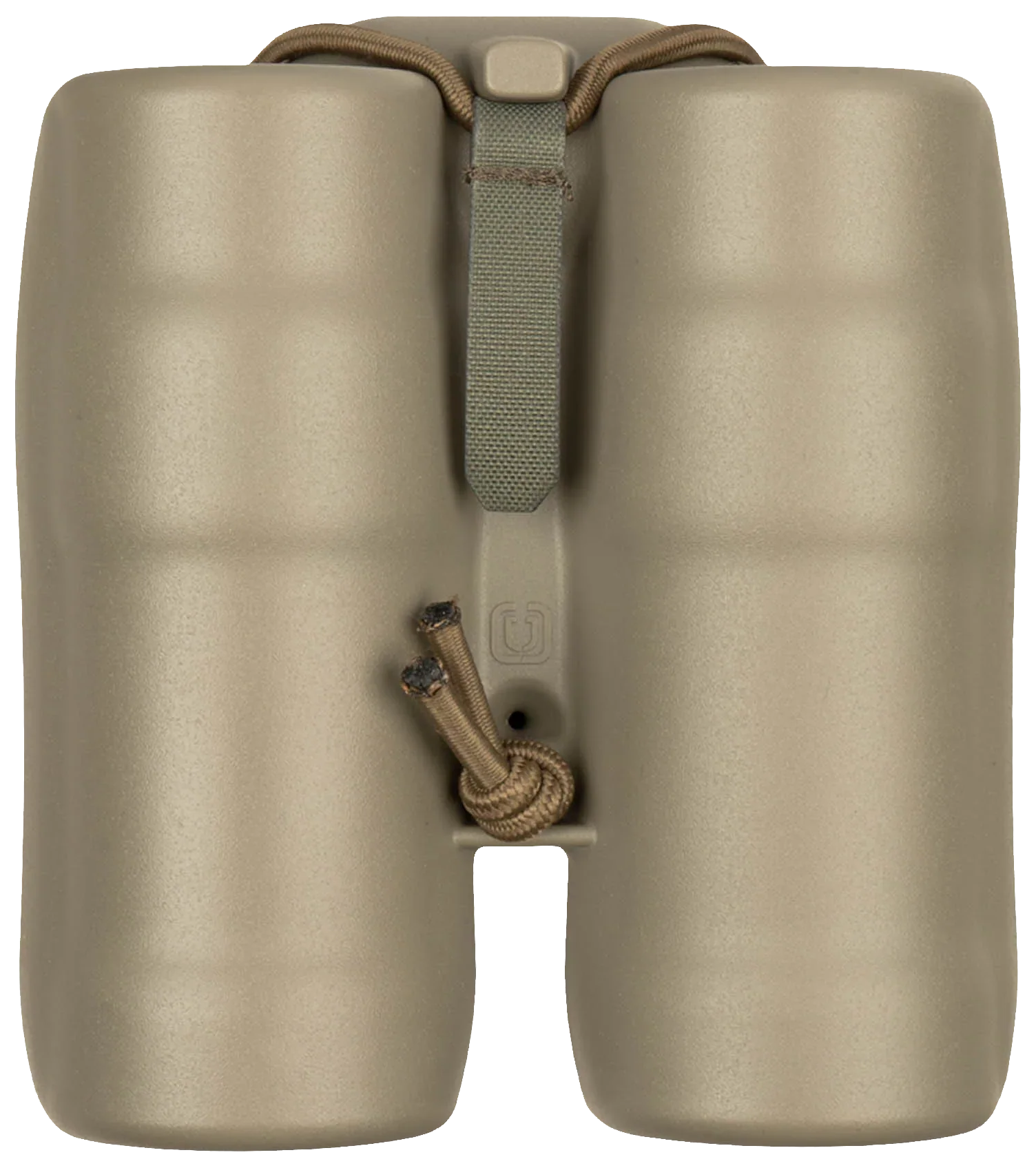

bottom view BOTTOM

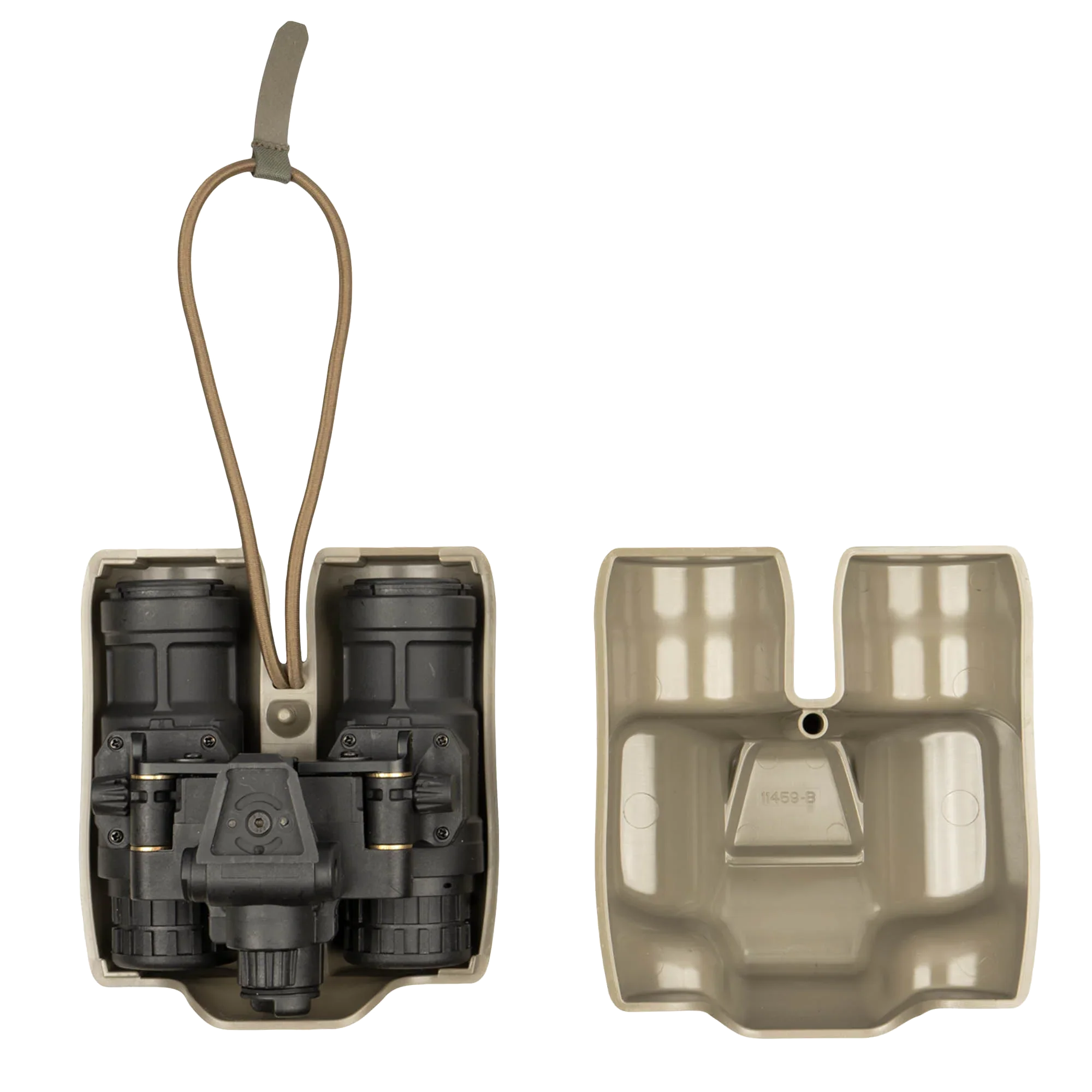

open case with PVS-31 OPEN
DEVCELL | NODBOX

NODBOX

Precision moulded hard case for BNVD

The NODBOX is a compact hard case built to protect the AN/PVS-31A and AN/PVS-31C binocular night vision devices. We designed it around the exact dimensions of the device and tested the fit until it was right. No void space, no rattle, no bulk.

AN/PVS-31A · 31C INJECTION MOULDED AUSTRALIAN MADE
HOW TO PROCURE → VIEW SPECS
/ 01
Exact Fit
Built to the precise dimensions of the AN/PVS-31A and 31C, with fitment tested and refined on the device. The case matches the optic, so protection is maximised in the smallest possible footprint.
/ 02
Impact & Crush Resistant
A rigid polymer shell that takes the knock so the optic does not.
/ 03
Carries Clean
Sized to fit standard pouches, packs and vehicle compartments.
/ 04
Environment Ready
Resistant to salt water, oils and greases. Unaffected by incidental fuel contact; avoid prolonged exposure.
/ 05
Field Serviceable Retention
Replaceable bungee tab. No tools, no return to base.
/ 06
Australian Made
Designed and produced locally, under veteran oversight.

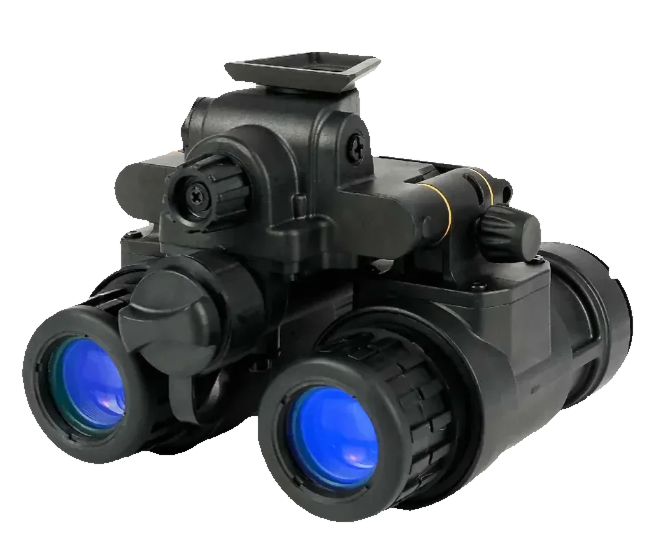

AN/PVS-31A night vision device
DEVICE / AN/PVS-31A BNVD
WHAT IT HOLDS

Moulded around the device.

The low profile shape sits flat in a loadout and packs down small, so it carries clean in a pouch, a pack or a vehicle. The internal geometry follows the device: every contact point is set by the mould, not by foam.

Nothing shifts and nothing rattles, so the shell can be as small as the optic allows.

BUILD — HOW IT'S MADE

Made to live in the field.

The polymer shell resists impact and compression during use and transport. The material resists salt water, oils and greases and is unaffected by incidental fuel contact, so it works across the range of environments operators actually deploy into. Avoid prolonged fuel exposure.

Every NODBOX is produced from a dedicated, precision-machined injection mould. Each case is designed and moulded in Australia, with full control over quality and fit.

NODBOX injection mould tooling
NODBOX / PRECISION MOULDING
SPECIFICATIONS

Built to a tighter standard.

Every NODBOX is engineered around the device it carries, with no wasted volume.

COMPATIBLE BNVD DEVICESAN/PVS-31A · AN/PVS-31C
EXTERNAL DIMENSIONS110 × 125 × 100 mm
WEIGHTTBC
MATERIALINJECTION MOULDED POLYMER
RETENTIONFIELD REPLACEABLE BUNGEE TAB
ORIGINDESIGNED & MADE IN AUSTRALIA
ENVIRONMENTAL PERFORMANCE
FUNGUS · MIL-STD-810H METHOD 508.8
Shell material listed Group I fungus inert in Annex B.
HIGH TEMPERATURE · MIL-STD-810H METHOD 501.7
124 °C heat deflection, more than 50 degrees above the standard's hottest storage condition of 71 °C, A1 hot dry.
LOW TEMPERATURE · MIL-STD-810H METHOD 502.7
Dimensionally stable through −51 °C severe cold.
TEMPERATURE SHOCK · MIL-STD-810H METHOD 503.7
Stable dimensions from −51 to +71 °C. Negligible moisture content.
HUMIDITY · MIL-STD-810H METHOD 507.6
Under 0.25 percent moisture absorption at 24 hours. No swelling or softening.
SALT FOG · MIL-STD-810H METHOD 509.7
Non metallic shell with no corrosion path.

Material performance referenced to MIL-STD-810H conditions. Shell material only, not assembly level test qualification.

CONSTRUCTION
IMPACT
No break unnotched Charpy to ISO 179, 870 J/m notched Izod to ASTM D256.
UV
Constructed from inherently UV stabilised material.
INGRESS
Engineered to meet or exceed IP55.
ELECTRICALLY INSULATING
Non conductive shell. Volume resistivity 2.1 × 10¹⁶ Ω·cm.
PRECISION MOULDED
Near zero shell gap. Designed and moulded in Australia.

Shell material only, not assembly level test qualification.

INTELLECTUAL PROPERTY

NODBOX design protected.

AU 202517968 REGISTERED
US 30/055,539 PATENT PENDING

A GROWING PLATFORM

The first of a line.

The NODBOX is the first case in a growing line. We are extending the platform to other night vision devices. Contact us for current fitments and what is in development.

PROCUREMENT

Supplied through authorised channels.

The NODBOX is sold to military, law enforcement and approved specialist users through authorised distributors. We do not sell direct to the public.

HOW TO PROCURE →
